TOP-LOCK®Superbolts Selection
|
|
|||||||||
|
Type |
Name |
Application |
Example |
Size range |
Suitable temperature |
Bolt strength depends on size |
Surface treatment |
Note |
|
|
|

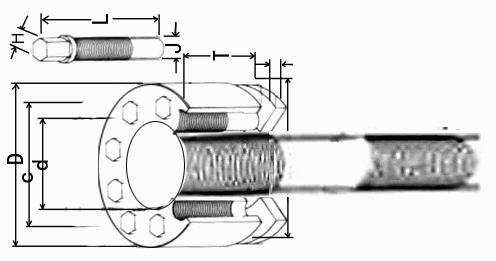

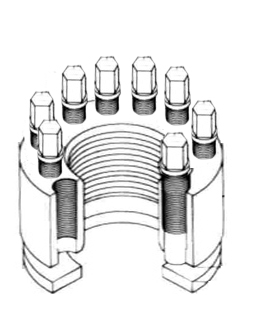

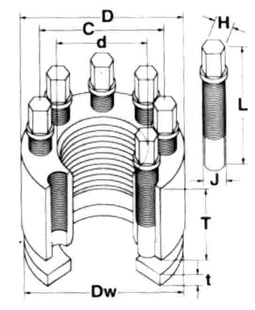

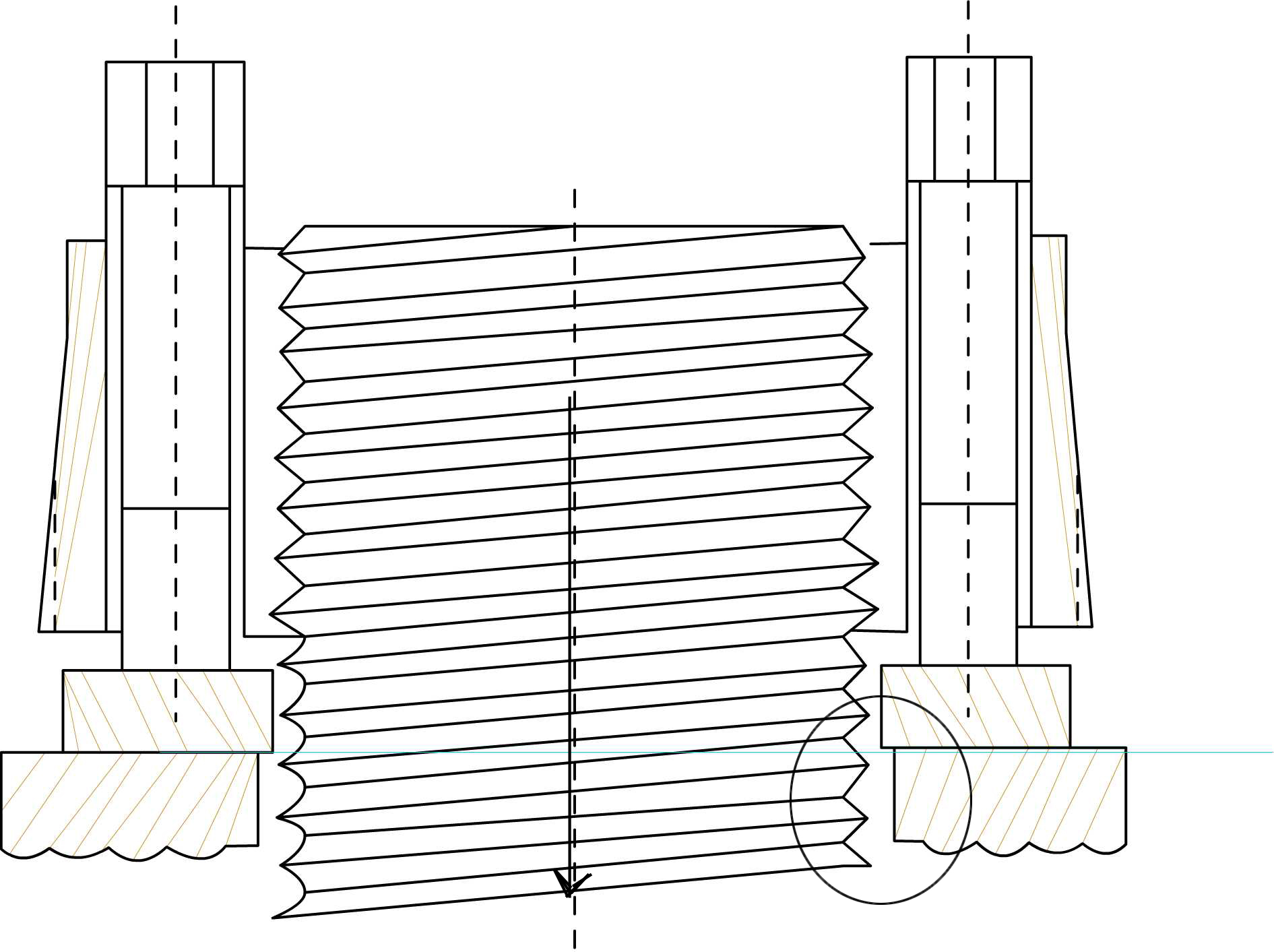

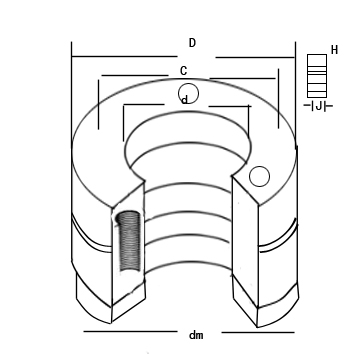

TOP-LOCK® nut-style tensioners (Standard)
|
Alternative to a standard nut
|
Applied in industries in need of bolt connection
|
M16-M160 |
-50°F to 500°F |
450 to 700N/m ㎡ 60 to 100Ksi |
According to requirements
|
Corresponding SB8 series bolt -type tensioner
|
|
|
|

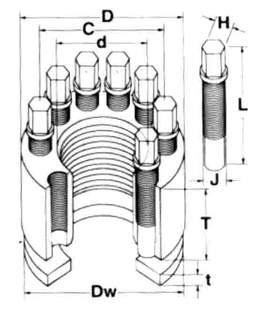

TOP-LOCK® nut-style tensioners (High strength)
|
Used for 8grade bolt/screw
|
Same using environment with MSB, but higher intensity
|
M16-M160 |
-50°F to 500°F* |
500 to 900N/m ㎡ 70 to 130Ksi |
According to requirements
|
Corresponding SB12 series bolt -type tensioner |
|
|
|

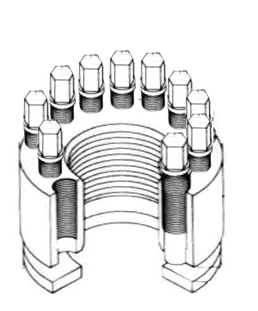

TOP-LOCK® nut-style tensioners (super High strength)
|
Used in high load
|
—— |
M16-M160 |
-50°F to 500°F |
—— |
According to requirements
|
—— |
|
|
|

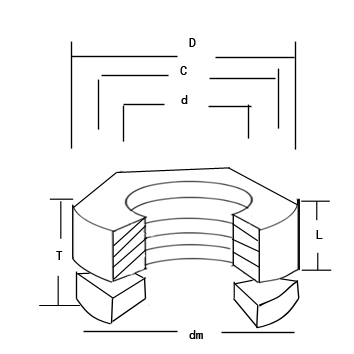

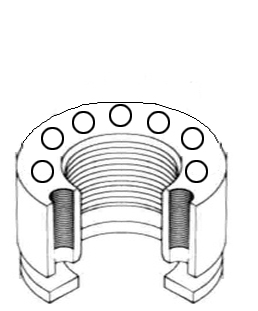

TOP-LOCK® nut-style tensioners (Compact)
|
Applicable to the highly constrained environment
|
Highly restricted a. hydraulic cylinder
b. shaft bracket c. piston connection
|
M16-M160 |
-50°F to 500°F |
250 to 400N/m ㎡ 35 to 60Ksi |
According to requirements
|
—— |
|
|
|
TOP-LOCK® nut-style tensioners (Rolling machine)
|
Applies to 600 or 800 series rolling motor shaft coupling and brake wheel
|
—— |
M16-M160 |
-50°F to 500°F |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® nut-style tensioners (Bearing locking)
|
Apply to directly replace the AN series bearing lock nut
|
—— |
AN6-AN950 Metric size available
|
-50°F to 500°F |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® nut-style tensioners (Counter nut)
|
Suitable for jacking bolts need to protect the environment
|
—— |
M16-M160 |
-50°F to 500°F |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® screw
|
Can provide all kinds of materials
|
—— |
Specially made as required
|
-423°F to 1400F |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® cross lock nut
|
Reciprocating compressor cross connection
|
—— |
Specially made as required
|
-50°F to 500°F |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® piston lock nut
|
The piston rod connected to the piston
|
—— |
M16-M160 |
根據(jù)材料而定 |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® force-measuring device
|
Testing bolt load
|
—— |
Specially made as required
|
According to material
|
—— |
According to requirements
|
—— |
|
|
|

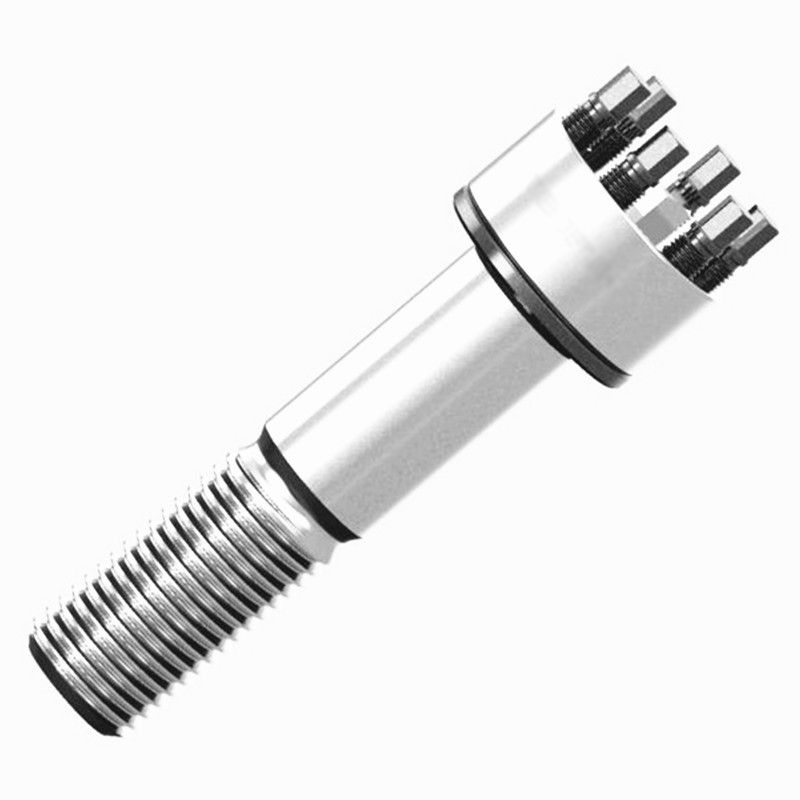

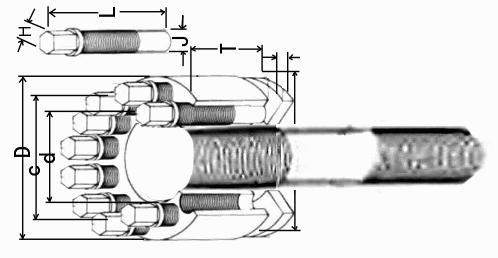

TOP-LOCK® bolt-style tensioners
|
Instead of 5 grade and B7grade bolt
|
Bolt connection in demanding industry
|
M16-M160 |
-50°F to 500°F |
400 to 650N/m ㎡ 60 to 95Ksi |
According to requirements
|
Corresponding MSB series nut -type tensioner |
|
|
|
TOP-LOCK® bolt-style tensioners (High strength)
|
Instead of 8 grade high strength bolts
|
Similar to SB8, but strength stronger
|
M20-M90 |
-50°F to 500°F |
500 to 850N/m ㎡ 70 to 125Ksi |
According to requirements
|
Corresponding MSG series nut -type tensioner
|
|
|
|
TOP-LOCK® bolt-style tensioners (super high strength)
|
The highest intensity bolt with rare materials in the world at present
|
—— |
Specially made as required
|
According to material
|
—— |
According to requirements
|
—— |
|
|
SSJX |
TOP-LOCK® bolt-style tensioners (Flush bolt)
|
Used for sink hole
|
Use occasions: a. gear box b. the blast furnace c. mining machinery d. the gear rack/stand e. sealing flange f. wind tunnel g. Machine h. weight machine
|
M16-M160 |
-50°F to 500°F |
—— |
According to requirements
|
—— |
|
|
|

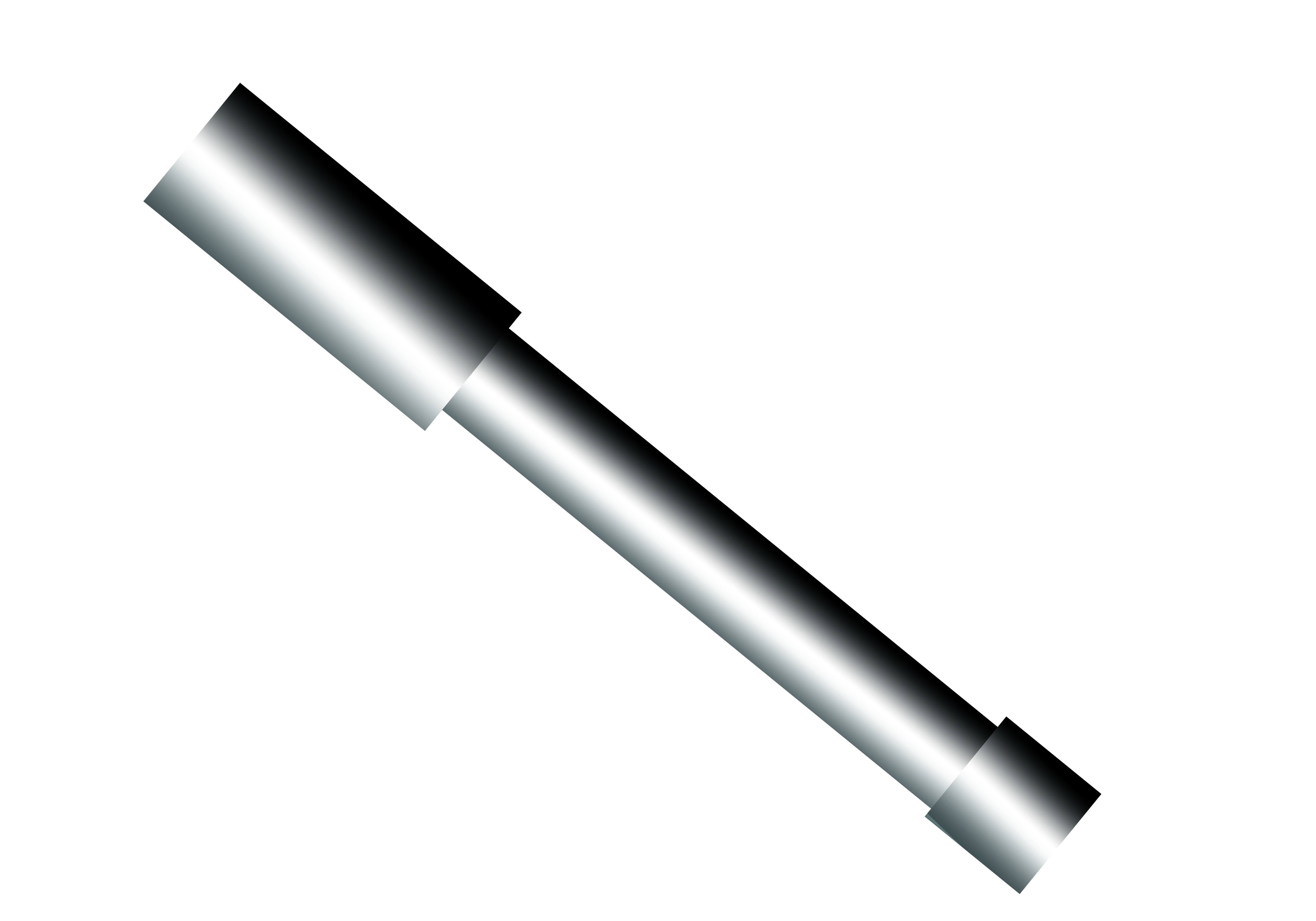

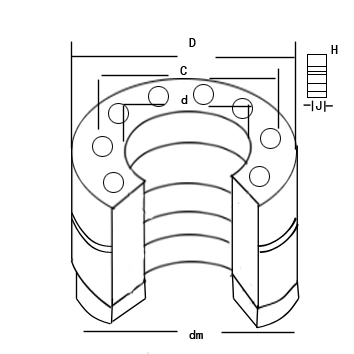

TOP-LOCK® nut-style tensioners (Flexible nut)
|
Release stress , avoid stress concentration, solve the problem of nut locked
|
Flexible nut applied in hole.Increase the flexibility of bolt connection.Strong application in clamping length short condition. |
M20-M160 |
-50°F to 500°F |
450 to 700N/m ㎡ 60 to 100Ksi |
According to requirements
|
Application
with the MSB series nut type tensioner or SB8
|
|
|
|

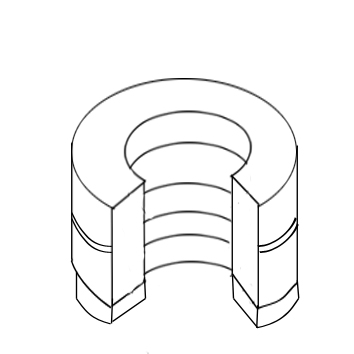

TOP-LOCK® high strength Flexible nut
|
Suitable for high stress level
|
Similar to SX8, but strength stronger
|
M20-M160 |
-150°F to 500°F* |
500 to 900N/m ㎡ 70 to 130Ksi |
According to requirements
|
Application
with the MSG series nut type tensioner or SB8
|
|
|
|

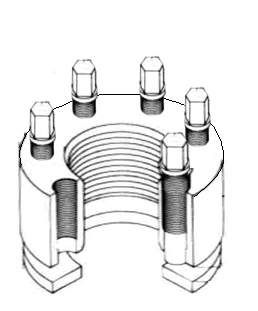

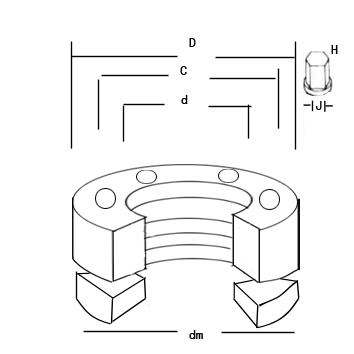

TOP-LOCK® nut-style tensioners (Medium temperature)
|
Medium temperature super nut, feature: jackbolts amount small
|
Big
stud: such as a. boiler feed pump b. boiler circulating pump
|
M20-M125 |
-50°F to 650°F |
310N/m ㎡ 45kis based on the walls and the AS
|
According to requirements
|
|
|
|
|
TOP-LOCK® nut-style tensioners (Medium temperature)
|
Medium temperature super nut, feature: jackbolts amount small
|
|
M24-M160 |
-50°F to 650°F |
|
According to requirements
|
|
|
|
|
TOP-LOCK® nut-style tensioners (Medium temperature)
|
Tall type medium temperature super nut for limited installation space location
|
A.points situation B.the steam turbine C.Engine D.Pump E. compressor
|
M24-M100 |
-50°F to 650°F |
310N/m ㎡ 45kis based on the walls and the AS
|
According to requirements
|
Applied to the diameter of limited space
|
|
|
|
TOP-LOCK® high temperature anti-corrosion type
|
Suitable for limited space
|
—— |
M16-M160 |
-423°F to 1200F* |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® high temperature anti-corrosion type
|
Suitable for high temperature environment
|
—— |
M24-M160 |
-423°F to 1200F* |
—— |
According to requirements
|
—— |
|
|
|
TOP-LOCK® stainless steel anti-corrosion type
|
Suitable for high temperature, corrosion, anti magnetic environment
|
—— |
M16-M160 |
-423°F to 1200F* |
—— |
According to requirements
|
—— |
|
|
High temperature bolt system
|
TOP-LOCK® power plant only
|
Applicable the connection for the valve, steam, the steam turbine flange
|
—— |
Specially made as required
|
to1.200°F |
—— |
According to requirements
|
—— |
|
|
Nuclear power series
|
TOP-LOCK® nuclear power only
|
Applicable the connection for valve, pump, heater, flange
|
—— |
Specially made as required
|
to650°F |
—— |
According to requirements
|
—— |
|
|
Nickel copper alloy
|
TOP-LOCK® admiralty only
|
Apply to ships and the sea water environment
|
—— |
Specially made as required
|
|
—— |
According to requirements
|
—— |
|
|
Anti-corrosion type
|
TOP-LOCK® special materials
|
Apply to wet and chemical corrosion environment
|
—— |
Specially made as required
|
Suitable material
|
—— |
According to requirements
|
—— |
|
|
EB type
|
TOP-LOCK® expansion bolt
|
Direct replacement coupling fitting bolt
|
—— |
Specially made as required
|
Suitable material
|
—— |
According to requirements
|
—— |
|
|
Tool
|
TOP-LOCK® special tools
|
Special torque wrench and socket
|
—— |
Specially made as required
|
N/A |
—— |
According to requirements
|
—— |
|
|
lubricant
|
TOP-LOCK® special lubricants
|
JL - G and JL - M lubricant
|
—— |
N/A |
1200°F,650°F |
—— |
According to requirements
|
—— |
|
|
The end cap
|
TOP-LOCK® end cap
|
Plastic end cap
|
—— |
Specially made as required
|
|
—— |
According to requirements
|
—— |
|
|
Note: the above
are nomal models.In addition, TOP - LOCK ® provides more
widely design and locking solutions, including other special material and
design.They can be applied to more harsh conditions of the special working
environment,
|
|||||||||
